Stretch Film Slitter Rewinder Machine

Semi Auto 18Kg Stretch Film Rewinder

PPD-SAR-18kg

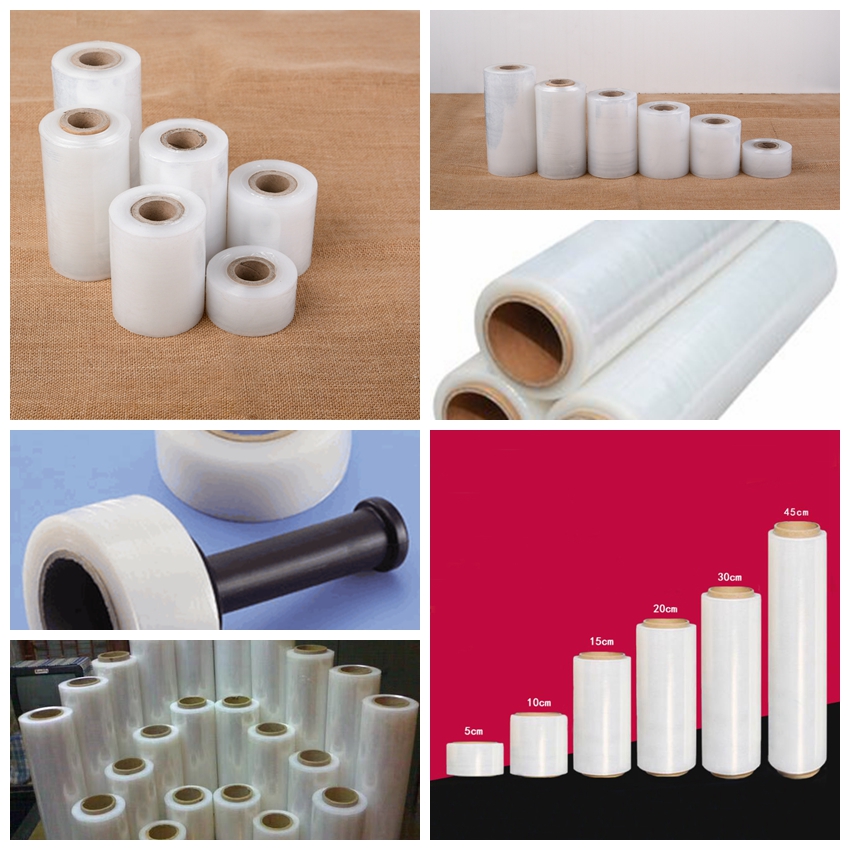

Semi auto 18kg stretch film rewinder is a multi-functional model to do both slitter and rewinder,it can do small one like 1kg,2kg,3kg,also can do 10g,15kg,18kg etc.
It is mainly used to make the big diameter roll into small ones,to correct the wrong-layer by rewind to improve the evenness of the winding material and appearance quality.Machine adopts flat belt transmission leak to make the load material speed the same with the leak speed.it is also reduce the production of srcondary membrane over-stretching,the friction pressure controlled by the cylinder.the units is convenient and flexible to adjust,small noise,frequency control,automatic meter winding,is the ideal cost performance winders.


Features:
1. PLC controling system
2. Tension is controlled automatically
3. Meter counter/length metering system available
4. Machine can do both 1kg,2kg,3kg,also can do 10g,15kg,18kg etc

 Main Data：

Name:Semi Auto 18Kg Stretch Film Rewinder

Model:PPD-SAR-18kg

Width of jumbo roll:500mm

Diameter of parent roll:max400mm

Width of parent roll :max500mm

Core specification of parent roll:/3inch

Width of sub-roll:500mm

Diameter of sub-roll:max300mm

Core speciation of sub-roll:1/1.5/2/3inch

Mechanical linear speed (max):650 m/min

Voltage：220/380/415V option

NOTE:Differents sizes can be customized.
