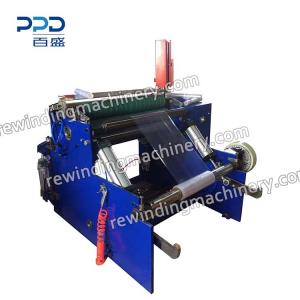

Coreless Foil Roll Rewinder
Coreless Foil Roll Rewinder

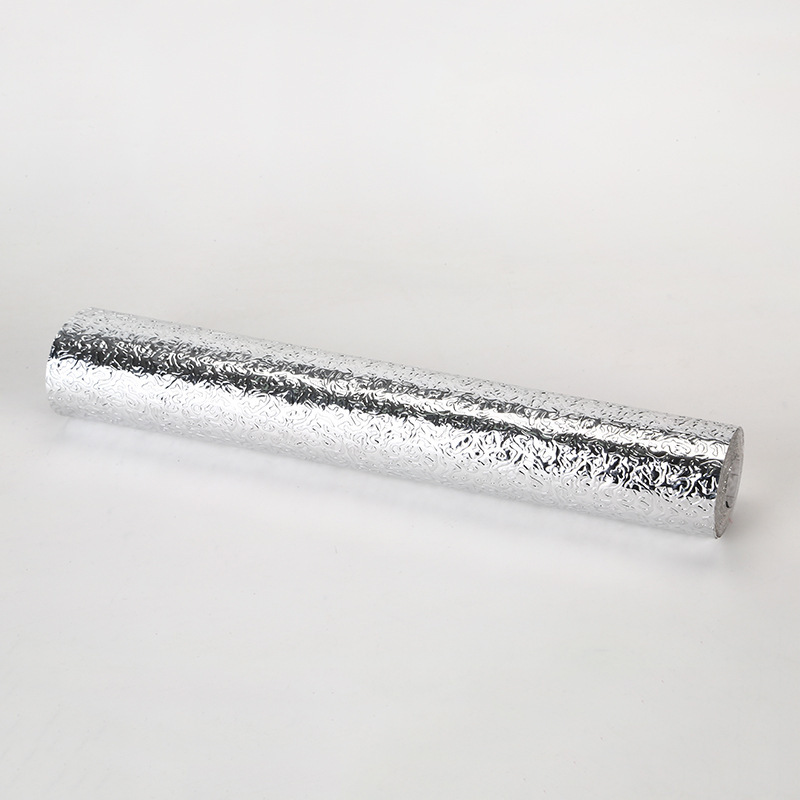

Coreless foil roll rewinder is mainly used for rewinding of foil roll to small hand roll.
It is a multi-finctional model,it also can rewind bakery paper,wallppaer ,book cover,gift paper,color printing paper, waterproof paper and so on.
As a option,this model also can rewind foil roll with paper core.
Features:
1. Machine adopts servo fixed length feeding to maintain high precision in high-speed operation.
2. Automatic stop once reach the setting length,automatic cut.
3. Automatic PLC control for tension of unwinding and unwinding.
4. Pneumatic feeding of unwinding roll, air shfat load both
unwinding roll and rewinding roll，auto tension control of unwinding roll.
Coreless foil roll rewinder is mainly used for rewinding of foil roll to small hand roll.
It is a multi-finctional model,it also can rewind bakery paper,wallppaer ,book cover,gift paper,color printing paper, waterproof paper and so on.
As a option,this model also can rewind foil roll with paper core.
Features:
1. Machine adopts servo fixed length feeding to maintain high precision in high-speed operation.
2. Automatic stop once reach the setting length,automatic cut.
3. Automatic PLC control for tension of unwinding and unwinding.
4. Pneumatic feeding of unwinding roll, air shfat load both
unwinding roll and rewinding roll，auto tension control of unwinding roll.
Main Data:
Name:Coreless Foil Roll Rewinder
Model:PPD-CFR800
Unwind roll width:800mm
Unwind roll OD:max600mm
Unwind roll ID:3inch
Rewinding roll width:max800mm
Rewinidng roll OD:max260mm
Working speed:200m/min
Rewinding roll ID: 25mm, 30mm, 35mm(or according to customers' requirement)
Voltage:220/380/415v,3ph
NOTE:Different sizes can be customized.
