Aluminium Foil Rewinding Machine

Aluminium Foil Cling Film Baking Paper Rewinder 3 in 1

PPD-FCBR450

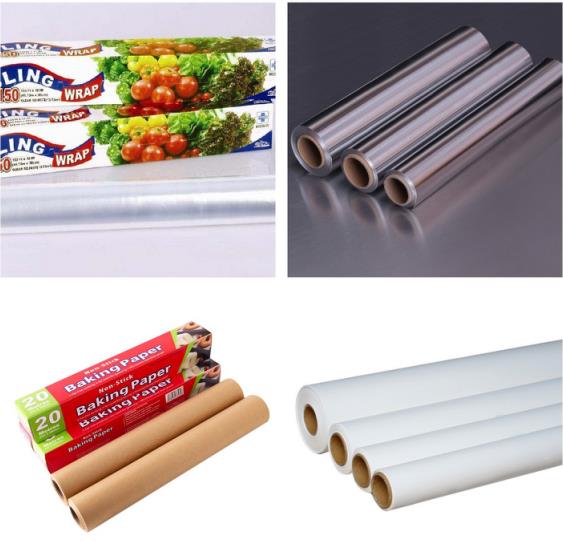

Aluminium foil cling film baking paper rewinder 3 in 1 is a 3 in 1 model for rewinding of cling film,aluminium foil,kitchen foil,cooking foil,BBQ foil, silicon paper,parchment paper baking paper,wax paper,PE coated paper,bakery paper into small house roll the length setting is every flexible from 2 meter to 300meter etc.

Features:
1, PLC+ man-machine interface + frequency converter control system, easy to operate.
2, air expansion shaft + magnetic powder tension control, can ensure the appearance of finished products smooth.
3.By two shaft exchange,the paper core changing speed is 50% than the single shaft model.

Main Data:

Name:Aluminium Foil Cling Film Baking Paper Rewinder 3 in 1

Model:PPD-FCBR450

Jumbo roll width:max450mm

Jumbo roll core diameter:3inch

Jumbo roll OD:max600mm

Rewind roll width:max 450mm

Rewind roll ct core diameter:35/38/40mm or as customized.

Rewind roll length setting:2-300meters option

Speed:max300rpm/min

Total power:2.2kw

Voltage:220/380/415V option

NOTE:Different sizes can be customized.
