Stretch Film Slitter Rewinder Machine

2 Turret Air Shaft Stretch Film Slitter Rewinder

PPD-2TSF500

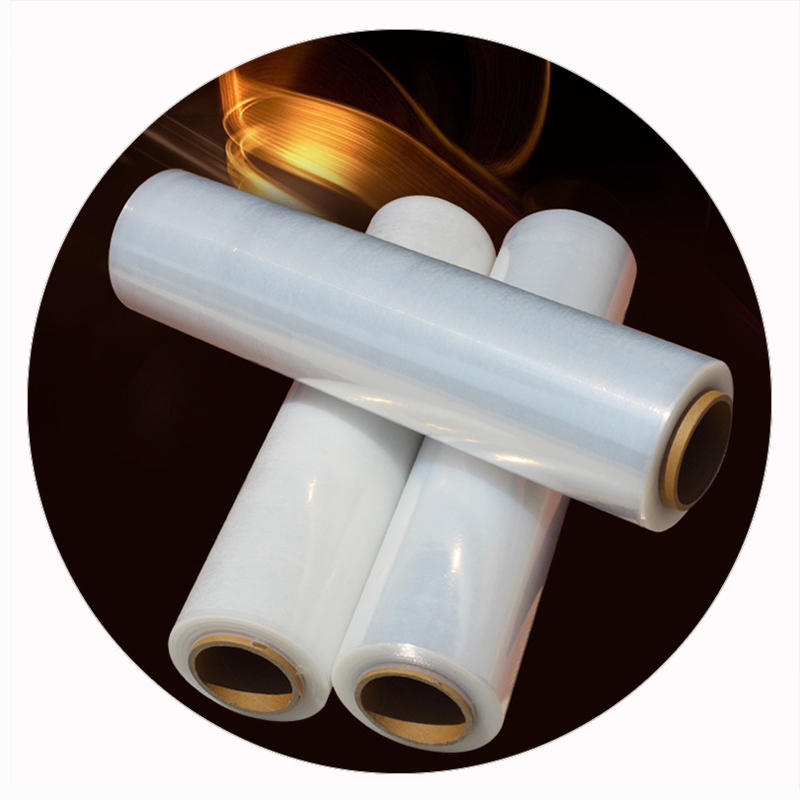

2 Turret air shaft stretch film slitter rewinder is our latest model to slit and rewind of PE stretch film,Industrial stretch film,pallet stretch film,LLDPE film,HDPE film rolls etc.

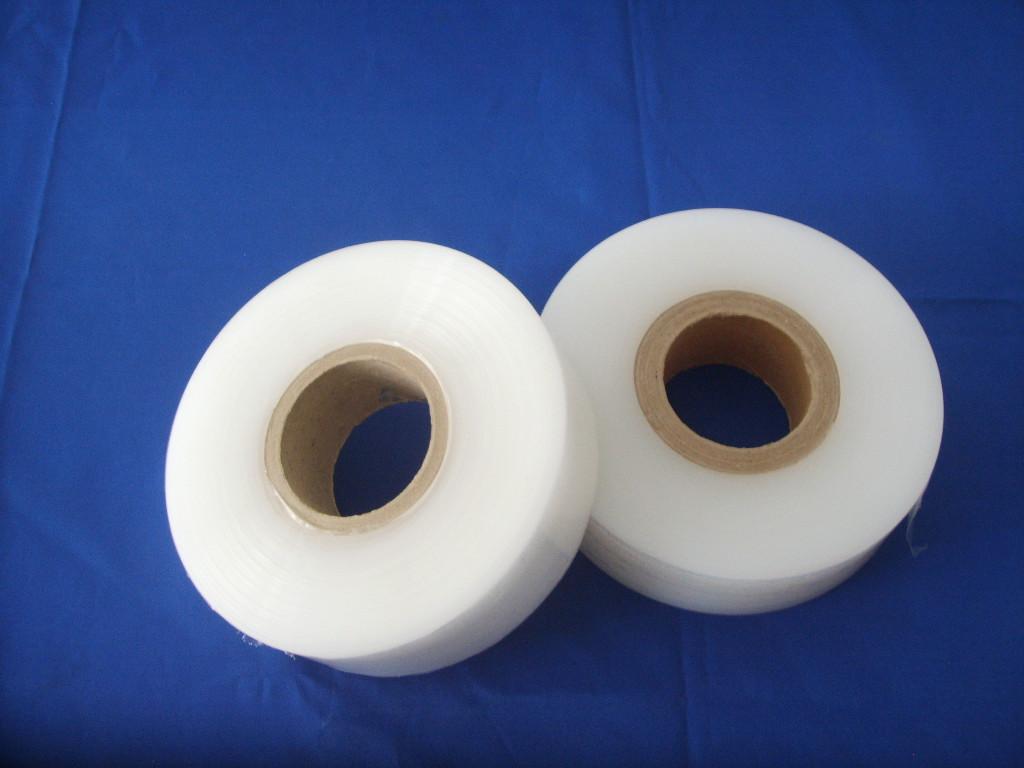

Machine works with 2 exchange shaft to divide the large diameter film into several small rolls. It is convenient and flexible to adjust, low noise, frequency conversion speed regulation, and automatic rewinding counter.


Features：
1.Different widths can be set,2.5/5/10/20cm option,max to parent roll.
2.Meter setiing adjustable,50/100/200m option
3.Different size of sub-roll core diameter can be choose,like 1inch,2inch,3inch
4.2inch,3inch size adopt air shaft rewind,1 inch adopt steel pipe rewind.

Main Data:

Name:2 Turret Air Shaft Stretch Film Slitter Rewinder

Model:PPD-2TSF500

Max width of parent roll:500 mm

Max diameter of parent roll:max400 mm

Inner diameter of parent roll:3inch

Production speed:600m/min

Width of sub-roll:25mm-500mm

Max diameter of sub-roll:max200 mm

Inner diameter of sub-roll:3inch or as customized size

Paper core loading mode:By Manual

Cutting mode:By Knife

Voltage:220/380/415V option

Motor power:1.5 KW

NOTE：Different sizes can be customized.
